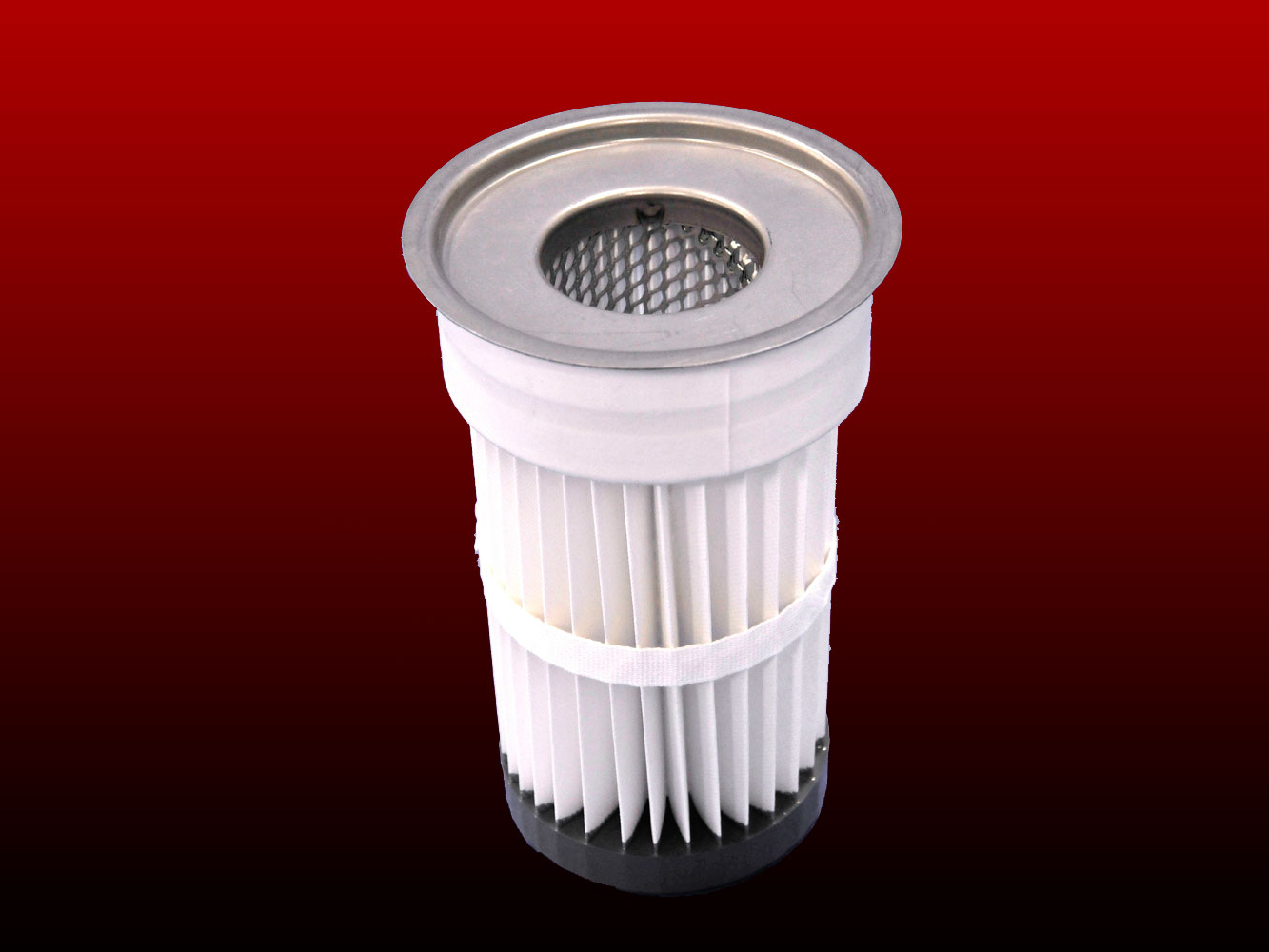

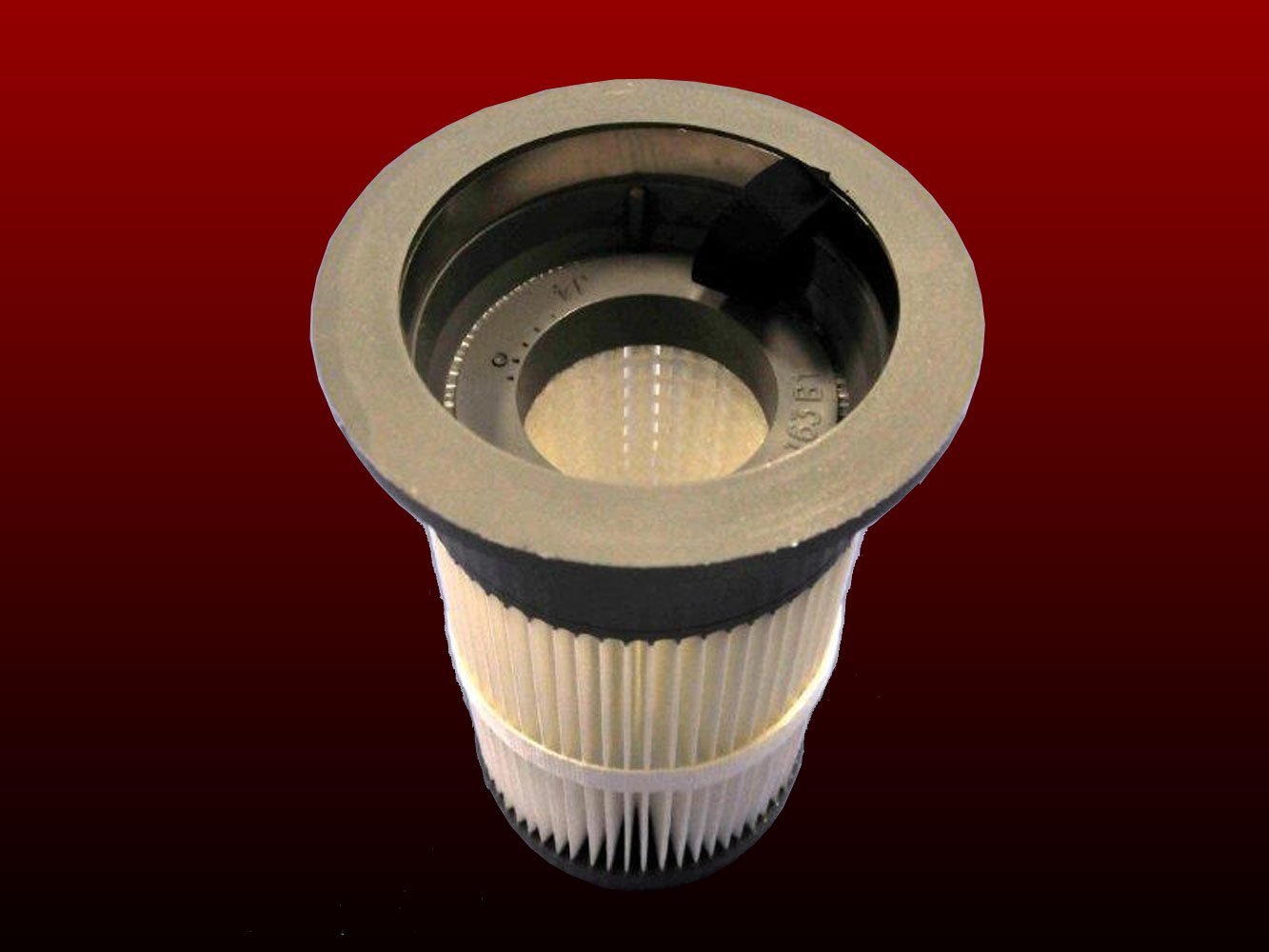

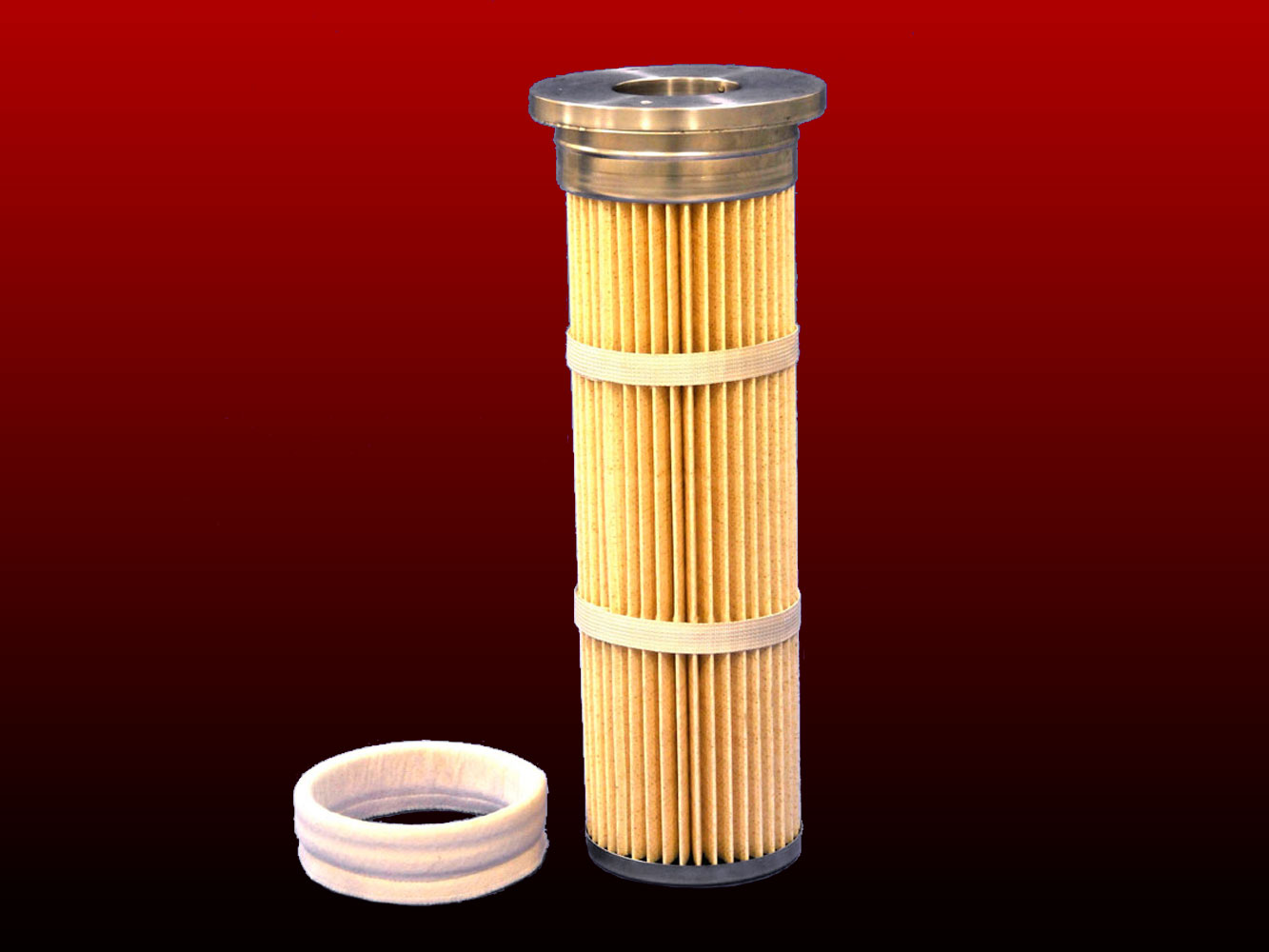

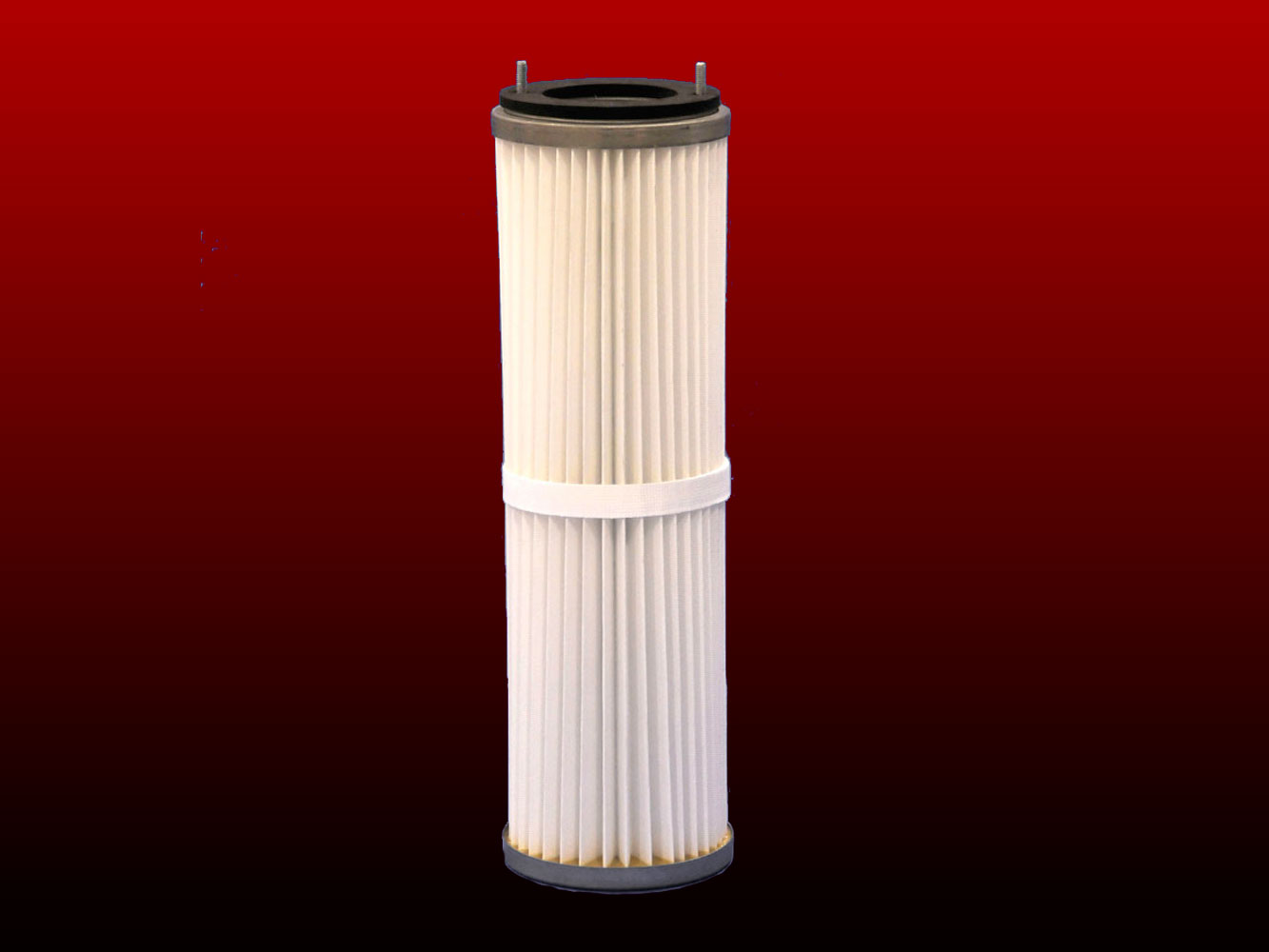

Pleated Filter Elements

Pleated filter elements are designed to replace traditional filter bag/cage configurations in pulse cleaning dust collection systems. Offering many performance enhancements including increasing the area of filter media by 2-3 times compared to a typical bag/cage system.

Pleated filter elements are available in a multitude of both top and bottom load configurations to fit most standard tubesheet and bag cup designs. In most cases, no collector modification is required.

Benefits Include:

  • Improved filtration efficiency
  • Greater air handling capacity for existing installations
  • Improved filter life
  • Easy installation, no cages required
  • Allows for the design of physically smaller units where space limitations exist
  • Reduces compressed air requirements
  • Increase filter area by 200-300%, resulting in lower filter ratios/and reduced operating pressure differentials
  • Washable exterior

Media Options:

  • Spunbond Polyester - for operation up to 280 degrees F
  • Hydrophobic ( oil and water resistant )
  • Carbon Impregnated or Aluminized for static control
  • PTFE Membrane Media for ultra high efficiency, non-stick surface
  • High Temperature Medias - Aramid and Ryton for operations up to 375 degrees F
